- Material: Parts A,B,D, are made of UL approved nylon PA66,C is made of nitrile butadiene rubber(NBR).
- Thread spec: Metric,PG.
- Working temperature:—40℃ to 100℃ in static state,instantaneous heat resistance up to 120℃;—20℃ to 80℃ in dynamic state, instantaneous heat resistance up to100℃.
- Characteristics: Special desing of ciamping die and rubber part,large range in clamping cable,ultra—strong stretching resistance,waterproof, dustproof, and high ability to resist salt,acid,alkali,alcohol,grease and general solvent.
- Color: Black, Light grey, as wellas special colors that can be designed at request.
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Information

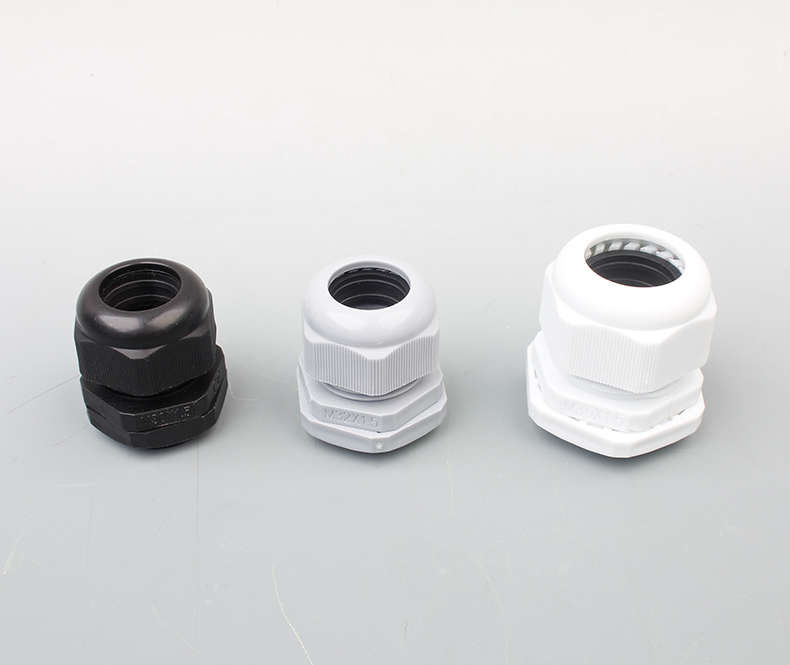

Nylon Cable Gland PG Type
Specifications：
|
Model |
Cable Range(mm) |
Thead O,D,L2(mm) |
Thead LengthL1(mm) |
Spanner Size |
PCS |
|
PG7 |
3-6.5 |
12.5 |
9 |
18/16 |
100/6000 |
|
PG7 |
2-5 |
12.5 |
9 |
18/16 |
100/6000 |
|
PG9 |
4-8 |
15.2 |
9 |
22/19 |
100/4000 |
|
PG9 |
2-6 |
15.2 |
9 |
22/19 |
100/4000 |
|
PG11 |
5-10 |
18.6 |
9 |
24/22 |
100/2500 |
|
PG11 |
3-7 |
18.6 |
9 |
24/22 |
100/2500 |
|
PG13.5 |
6-11 |
20.4 |
10 |
27/24 |
100/2000 |
|
PG13.5 |
5-9 |
20.4 |
10 |
27/24 |
100/2000 |
|
PG16 |
10-13 |
22.5 |
10 |
30/27 |
100/1700 |
|
PG16 |
7-12 |
22.5 |
10 |
30/27 |
100/1700 |
|
PG19 |
12-15 |
24 |
10 |
30/28 |
100/1600 |
|
PG19 |
10-12 |
24 |
10 |
30/28 |
100/1600 |
|
PG21 |
13-18 |
28.3 |
12 |
35/33 |
100/1000 |
|
PG21 |
9-16 |
28.3 |
12 |
35/33 |
100/1000 |
|
PG25 |
16-21 |
30 |
12 |
37/35 |
100/800 |
|
PG25 |
13-18 |
30 |
12 |
37/35 |
100/800 |
|
PG29 |
18-25 |
37 |
12 |
45/42 |
50/500 |
|
PG29 |
13-20 |
37 |
12 |
45/42 |
50/500 |
|
PG36 |
22-32 |
47 |
15 |
58/52 |
20/360 |
|
PG36 |
20-26 |
47 |
15 |
58/52 |
20/360 |
|
PG42 |
32-38 |
54 |
18 |
62/58 |
20/220 |
|
PG42 |
25-31 |
54 |
18 |
62/58 |
20/220 |
|
PG48 |
37-44 |
59.3 |
18 |
70/64 |
20/240 |
|
PG48 |
29-35 |
59.3 |
18 |
70/64 |
20/240 |
|
PG63 |
42-50 |
71 |
30 |
83/77 |
10/100 |
|
PG63 |
32-40 |
71 |
30 |
83/77 |
10/100 |
